引言

上一节我们为引擎完善了 ImGUI 事件，对预生成文件进行了修改。今天我们来看看事件系统对输入的轮询。

输入类

首先我们在 Infinite/ 下新建 Input.h 头文件，与 Windows 设计类似作为一个接口：

#pragma once

#include "Core.h"

namespace Infinite {

	class INFINITE_API Input
	{
	public:
		inline static bool IsKeyPressed(int keycode) { return s_Instance->IsKeyPressedImpl(keycode); }

		inline static bool IsMouseButtonPressed(int button) { return s_Instance->IsMouseButtonPressedImpl(button); }
		inline static std::pair<float, float> GetMousePosition() { return s_Instance->GetMousePositionImpl(); }
		inline static float GetMouseX() { return s_Instance->GetMouseXImpl(); }
		inline static float GetMouseY() { return s_Instance->GetMouseYImpl(); }

	protected:
		virtual bool IsKeyPressedImpl(int keycode) = 0;

		virtual bool IsMouseButtonPressedImpl(int button) = 0;
		virtual std::pair<float, float> GetMousePositionImpl() = 0;
		virtual float GetMouseXImpl() = 0;
		virtual float GetMouseYImpl() = 0;

	private:
		static Input* s_Instance;
	};
}

我们设置了一个输入单例，并且配置好了函数实现接口。

Windows输入类

接着我们来到 src/Platform/Windows 文件夹，新建 WindowsWindow.cpp 和 WindowsWindow.h。

头文件 WindowsInput.h 没什么可说的：

#pragma once

#include "Infinite/Input.h"

namespace Infinite {

	class WindowsInput : public Input
	{
	protected:
		virtual bool IsKeyPressedImpl(int keycode) override;
		virtual bool IsMouseButtonPressedImpl(int button) override;
		virtual std::pair<float, float> GetMousePositionImpl() override;
		virtual float GetMouseXImpl() override;
		virtual float GetMouseYImpl() override;
	};

}

而 WindowsInput.cpp 我们先

#include "ifnpch.h"
#include "WindowsInput.h"
#include "./Infinite/Application.h"

#include <GLFW/glfw3.h>

namespace Infinite {

	Input* Input::s_Instance = new WindowsInput();

	bool WindowsInput::IsKeyPressedImpl(int keycode)
	{

	}

	bool WindowsInput::IsMouseButtonPressedImpl(int button)
	{

	}

	std::pair<float, float> WindowsInput::GetMousePositionImpl()
	{

	}

	float WindowsInput::GetMouseXImpl()
	{

	}

	float WindowsInput::GetMouseYImpl()
	{

	}

}

然而现在我们无法直接获取窗口 GLFWwindow* m_Window（在 WindowsWindow.h 中），一个可行的解决方案是考虑友元访问，但考虑到封装性最好还是不公开窗口。

因此我们在 Window.h 中加入一个函数 GetNativeWindow 返回一个虚拟的空指针，获取本地窗口：

#pragma once

#include "ifnpch.h"

#include "Infinite/Core.h"
#include "Infinite/Events/Event.h"

namespace Infinite {

	struct WindowProps
	{
		std::string Title;
		unsigned int Width;
		unsigned int Height;

		WindowProps(const std::string& title = "Infinite Engine",
			unsigned int width = 1280,
			unsigned int height = 720)
			: Title(title), Width(width), Height(height)
		{
		}
	};

	// Interface representing a desktop system based Window
	class INFINITE_API Window
	{
	public:
		using EventCallbackFn = std::function<void(Event&)>;

		virtual ~Window() {}

		virtual void OnUpdate() = 0;

		virtual unsigned int GetWidth() const = 0;
		virtual unsigned int GetHeight() const = 0;

		// Window attributes
		virtual void SetEventCallback(const EventCallbackFn& callback) = 0;
		virtual void SetVSync(bool enabled) = 0;
		virtual bool IsVSync() const = 0;

+		virtual void* GetNativeWindow() const = 0;

		static Window* Create(const WindowProps& props = WindowProps());
	};

}

声明之后我们就可以在 WindowsWindow.h 返回 m_Window：

#pragma once

#include "Window.h"

#include <GLFW/glfw3.h>


namespace Infinite {

	class WindowsWindow : public Window
	{
	public:
		WindowsWindow(const WindowProps& props);
		virtual ~WindowsWindow();

		void OnUpdate() override;

		inline unsigned int GetWidth() const override { return m_Data.Width; }
		inline unsigned int GetHeight() const override { return m_Data.Height; }

		// Window attributes
		inline void SetEventCallback(const EventCallbackFn& callback) override { m_Data.EventCallback = callback; }
		void SetVSync(bool enabled) override;
		bool IsVSync() const override;

+		inline virtual void* GetNativeWindow() const { return m_Window; }
	private:
		virtual void Init(const WindowProps& props);
		virtual void Shutdown();
	private:
		GLFWwindow* m_Window;

		struct WindowData
		{
			std::string Title;
			unsigned int Width, Height;
			bool VSync;

			EventCallbackFn EventCallback;
		};

		WindowData m_Data;
	};

}

KeyPressed

bool WindowsInput::IsKeyPressedImpl(int keycode)
{
    auto window = static_cast<GLFWwindow*>(Application::Get().GetWindow().GetNativeWindow());
    auto state = glfwGetKey(window, keycode);

    return state == GLFW_PRESS
        || state == GLFW_REPEAT;
}

我们从应用程序 Application 获取窗口 window，调用 glfw 内置函数 glfwGetKey() 即可。

MouseButtonPressed

bool WindowsInput::IsMouseButtonPressedImpl(int button)
{
    auto window = static_cast<GLFWwindow*>(Application::Get().GetWindow().GetNativeWindow());
    auto state = glfwGetMouseButton(window, button);

    return state == GLFW_PRESS;
}

获取鼠标按压事件同理，调用 glfwGetMouseButton()。

MousePos

std::pair<float, float> WindowsInput::GetMousePositionImpl()
{
    auto window = static_cast<GLFWwindow*>(Application::Get().GetWindow().GetNativeWindow());
    double xpos, ypos;
    glfwGetCursorPos(window, &xpos, &ypos);

    return { (float)xpos, (float)ypos };
}

float WindowsInput::GetMouseXImpl()
{
    // auto window = static_cast<GLFWwindow*>(Application::Get().GetWindow().GetNativeWindow());
    // double xpos, ypos;
    // glfwGetCursorPos(window, &xpos, &ypos);

    // return (float)xpos;

    auto [x, y] = GetMousePositionImpl();
    return (float)x;
}

float WindowsInput::GetMouseYImpl()
{
    // auto window = static_cast<GLFWwindow*>(Application::Get().GetWindow().GetNativeWindow());
    // double xpos, ypos;
    // glfwGetCursorPos(window, &xpos, &ypos);

    // return (float)ypos;

    auto [x, y] = GetMousePositionImpl();
    return (float)y;
}

如果项目不是 C++17 标准，则使用注释中的实现方法。

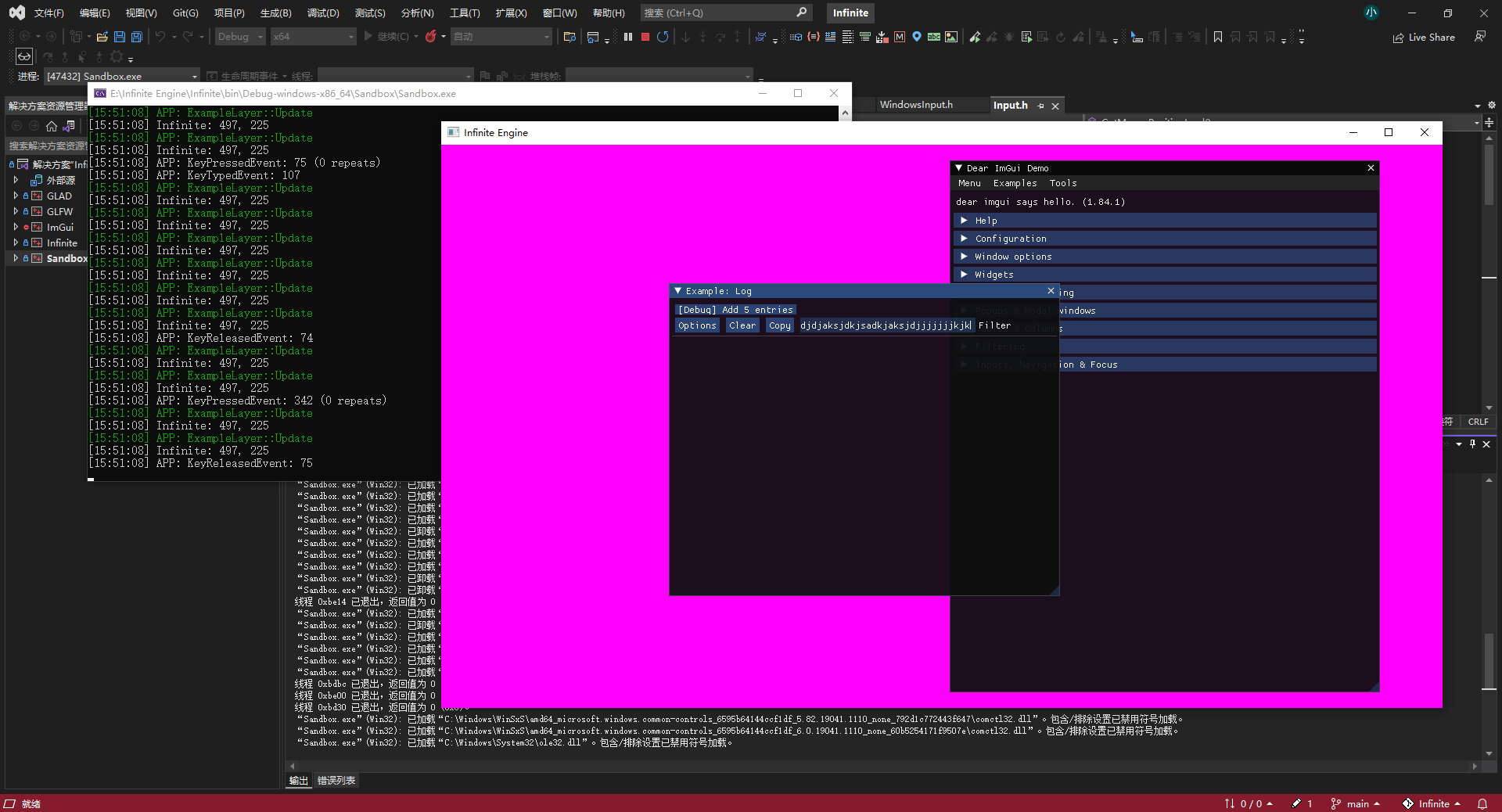

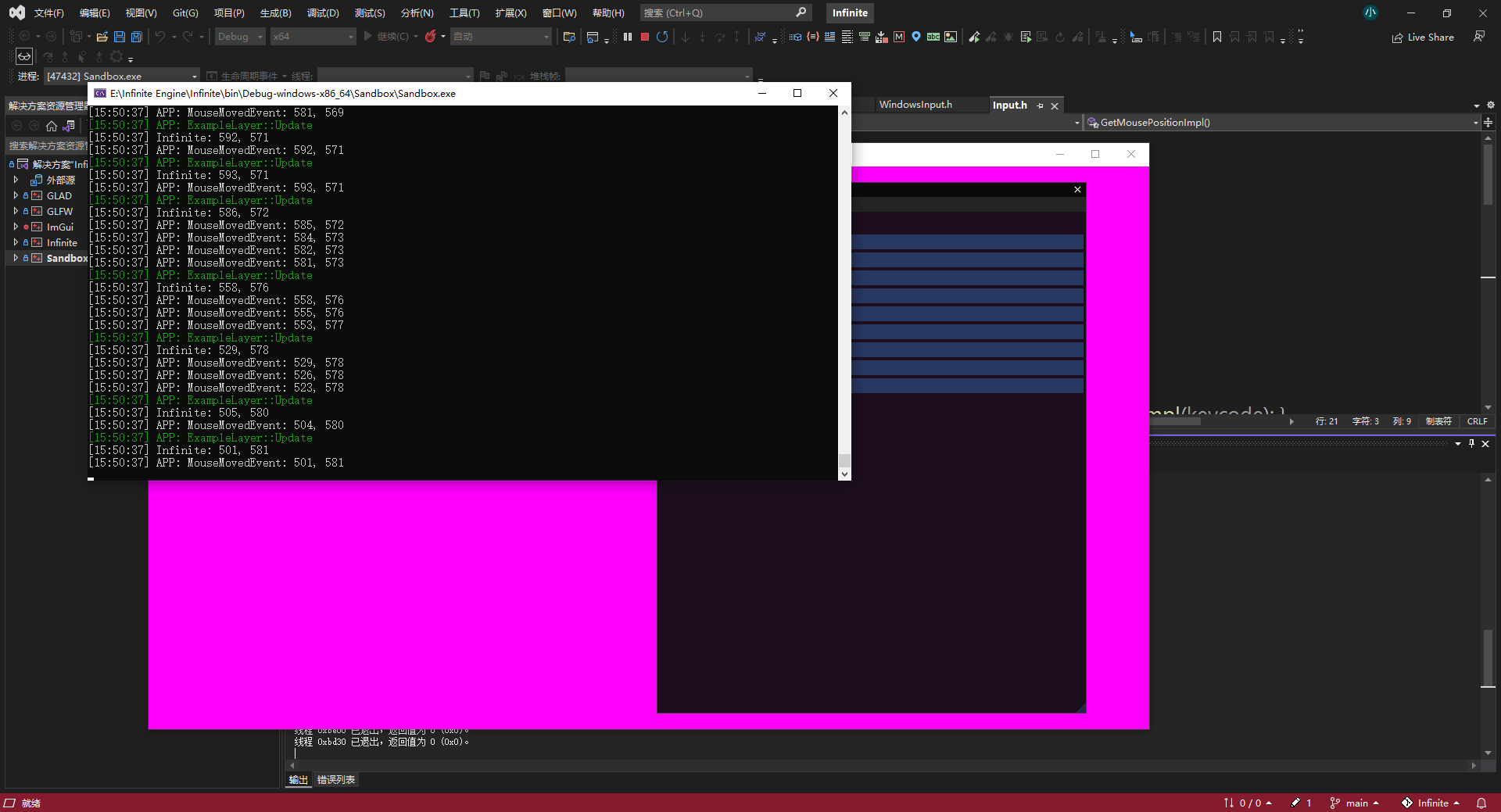

调试

在 Application.cpp 加入鼠标坐标调试：

#include "ifnpch.h"
#include "Application.h"

#include "Events/ApplicationEvent.h"
#include "Log.h"

#include <glad/glad.h>

+#include "Input.h"

namespace Infinite {

#define BIND_EVENT_FN(x) std::bind(&Application::x, this, std::placeholders::_1)

	Application* Application::s_Instance = nullptr;

	Application::Application()
	{
		IFN_CORE_ASSERT(!s_Instance, "Application already exists!");
		s_Instance = this;

		m_Window = std::unique_ptr<Window>(Window::Create());
		m_Window->SetEventCallback(BIND_EVENT_FN(OnEvent));
	}

	Application::~Application() {}

	void Application::PushLayer(Layer* layer)
	{
		m_LayerStack.PushLayer(layer);
		layer->OnAttach();
	}

	void Application::PushOverlay(Layer* layer)
	{
		m_LayerStack.PushOverlay(layer);
		layer->OnAttach();
	}


	void Application::OnEvent(Event& e)
    {
		EventDispatcher dispatcher(e);
		dispatcher.Dispatch<WindowCloseEvent>(BIND_EVENT_FN(OnWindowClose));

		for (auto it = m_LayerStack.end(); it != m_LayerStack.begin();)
		{
			(*--it)->OnEvent(e);
			if (e.Handled)
				break;
		}
    }

	void Application::Run()
	{
		while (m_Running)
		{
			glClearColor(1, 0, 1, 1);
			glClear(GL_COLOR_BUFFER_BIT);

			for (Layer* layer : m_LayerStack)
				layer->OnUpdate();

+			auto [x, y] = Input::GetMousePosition();
+			IFN_CORE_TRACE("{0}, {1}", x, y);
			m_Window->OnUpdate();
		}
	}

	bool Application::OnWindowClose(WindowCloseEvent& e)
	{
		m_Running = false;
		return true;
	}

}
